Battery Operated Dermatome MT-Q3
〖Product Name〗Cordless Battery Operated Dermatome
〖Specification〗MT-Q3B
〖Intended Use〗It is a device used for skin harvesting in various thicknesses and widths.

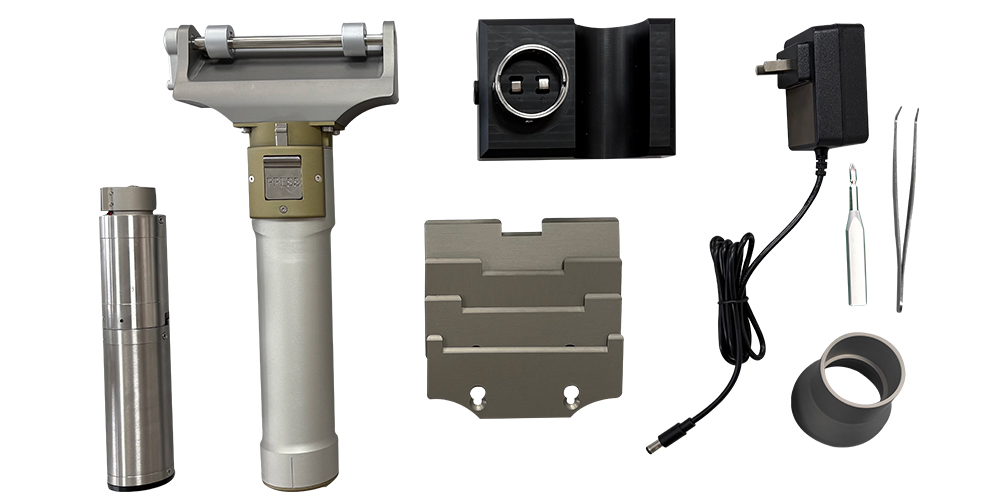

〖Standard Components〗It consists of 1 handpiece, 1 charger,1 motor, 2 batteries, 1 screwdriver,4 width plates(25mm, 42mm, 65mm,80mm),1 tweezer ,1 sterile channel,1 box medical dermatome blades,1 autoclave case,1 transportation case.
〖Special Features〗
1. Strong Power: Battery operated, no need power supply. Battery Li-ion, DC12V, 1200mAh. Motor capacity: 28W. speed cutting ,it can reach 7000rpm; Smooth cutting action, virtually effortless cutting even during excision of eschar.
2. Mechanized cutting: Compared with manual cutting,mechanized cutting that consistently produces clean,uniform grafts, increase surgery efficiency,reduce pain of patients.
3. Precise Galibration:
* Thickness: 0-1.2mm in 0.02 inch (0.05mm) increments.
* Width:Width: 25mm, 42mm, 65mm,80mm. (Special size width plate can be customized according to requirements).
4. Easy Operation, Safe and Reliable:
* Blade can be quickly and safely inserted.
* Battery and motor can be detached .
* Hand held control, easy to operate; handle with contact switch design,safety to use.
5. Low Maintenance:
* Smooth head design facilitates easy and thorough cleaning. No lubrication required.Avoid accumulation of pollutants.
* Various sterilization methods are applicable, such as pre-vacuum and gravity displacement steam sterilization or low temperature plasma sterilization, etc.
〖Ordering Information〗
|
Ref No. |
Description |
|
MT-Q3B-00-00 |
Battery Dermatome(MT-Q3B)(Standard Components) |
|
MT-Q3B-01-00 |
Battery |
|
MT-Q3B-02-00 |
Handpiece |
|
MT-Q3B-03-25 |
Width Plate (1inch/2.5cm) |
|
MT-Q3B-03-38 |
Width Plate (1.5inch/3.8cm) |
|
MT-Q3B-03-42 |
Width Plate (1.65inch/4.2cm) |
|
MT-Q3B-03-51 |
Width Plate (2inch/5.1cm) |
|
MT-Q3B-04-01 |
Charger |
|
MT-Q3B-04-02 |
Motor |
|
MT-Q3B-05-00 |
Screwdriver |
|
MT-Q3B-05-01 |
Tweezer |
|
MT-Q3B-05-02 |
Sterile Channel |
|
MT-Q3B-06-00 |
Medical Dermatome Blade(1/Pc) |
|
MT-Q3B-06-10 |
Medical Dermatome Blade(10/Box) |
|
MT-Q3B-07-00 |
Autoclave Case |
|
MT-Q3B-08-00 |
Transportation Case |
